Well Water Filtration Systems: How to Choose the Right Setup

By Filtiva Editorial Team · Updated Oct 31, 2026 · 13 min read

Filtiva is reader-supported. We may earn a commission from links on this page. Learn more

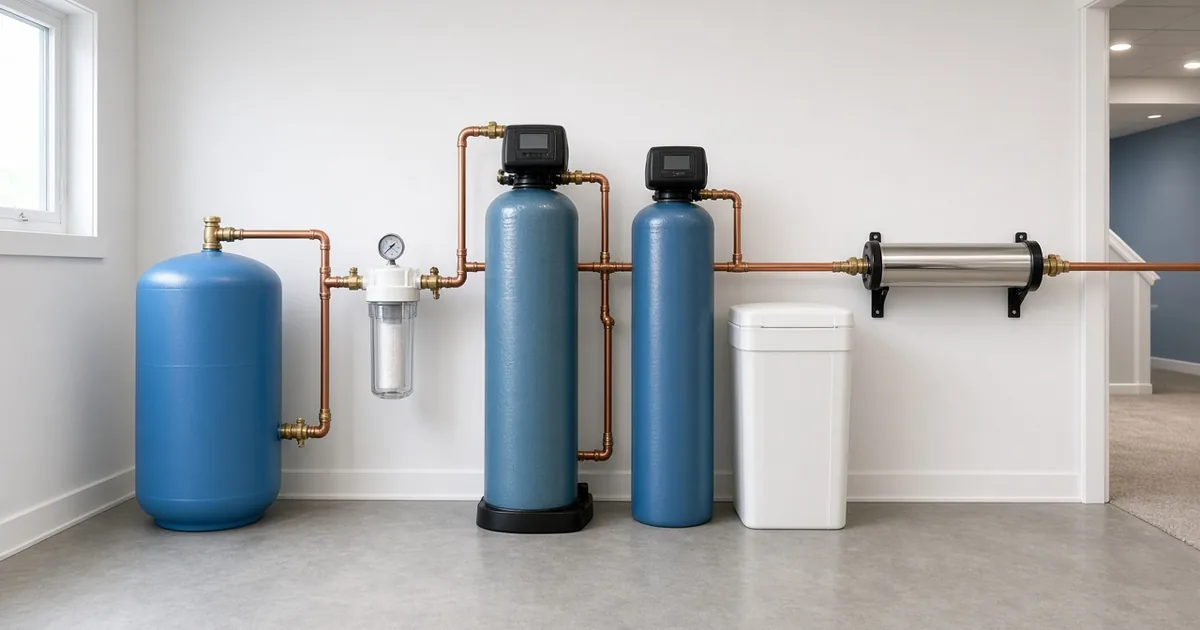

Basement well water treatment train: pressure tank, sediment filter, two media tanks, brine tank, and UV unit on one line
On this page

Quick answer

**The right well water filtration system depends on what your water test shows.** Start with a lab test from a state-certified lab. Then match each problem to a treatment: a sediment filter for grit, an oxidizing filter for iron, manganese, or sulfur smell, a softener for hardness, an acid neutralizer for low pH, and UV for bacteria. Most homes need two or three of these stages, not all of them. Installed systems typically run $800 to $4,000.

Well water is different from city water. No utility is testing it for you. The CDC notes that EPA drinking water rules do not apply to private wells, so the owner is in charge of testing and treatment (CDC).

That sounds like a lot of work. It isn't, once you know the order. Test first, then treat only what the test finds. This guide shows you how to read a well water test, how to pick a water filtration system for well water, which system type fixes which problem, how the stages fit together, and what each one costs.

Safety first: You can't see, taste, or smell most germs or nitrate. Don't rely on how the water looks. The CDC recommends testing a private well at least once a year, using a state-certified lab (CDC). If a test shows bacteria or high nitrate, follow your local health department's advice before you drink the water.

Why test your well water before buying a filter?

A filter can only fix the problem it is built for. A softener won't kill bacteria. A UV light won't remove iron. A carbon filter won't fix acidic water. If you buy the wrong system, you spend money and still have bad water.

The CDC says you should test water before choosing a home filter, and not rely on taste or smell alone (CDC, Choosing Home Water Filters). Your local health department can help you find a state-certified lab.

What should a well water test include?

At minimum, the CDC recommends testing every year for total coliform bacteria, nitrates, total dissolved solids (TDS), and pH (CDC). For choosing equipment, also ask the lab for:

  • Hardness (calcium and magnesium)
  • Iron and manganese
  • Hydrogen sulfide, if you notice a rotten-egg smell
  • Copper and lead, if you see blue-green stains or have older plumbing

The EPA ties common symptoms to the tests that explain them (EPA):

What you notice What to test for
Scaly buildup, soap won't lather Hardness
Orange, brown, or black stains Iron, manganese, copper
Rotten-egg, metallic, or other odd taste or smell Hydrogen sulfide, corrosion, metals
Pipes or fixtures wearing out fast pH and corrosion
Recent flooding near the well Coliform bacteria, nitrate

Source: U.S. EPA, Protect Your Home's Water.

When should you retest?

Test once a year, plus any time something changes. The CDC lists these triggers: after a well repair, after nearby flooding, when the water's taste, color, or smell changes, and when someone in the home is pregnant or a new baby arrives (CDC). The EPA notes that nitrate is a special risk for infants under six months old (EPA).

A full lab panel costs about $100 to $300, according to HomeGuide (HomeGuide). That is small next to the price of equipment you may not need. For a quick hardness check between lab tests, see our guide on how to test water hardness at home.

Which well water filtration system do you need?

Use your test results to pick each stage. This chart matches common well problems to the treatment that usually handles them.

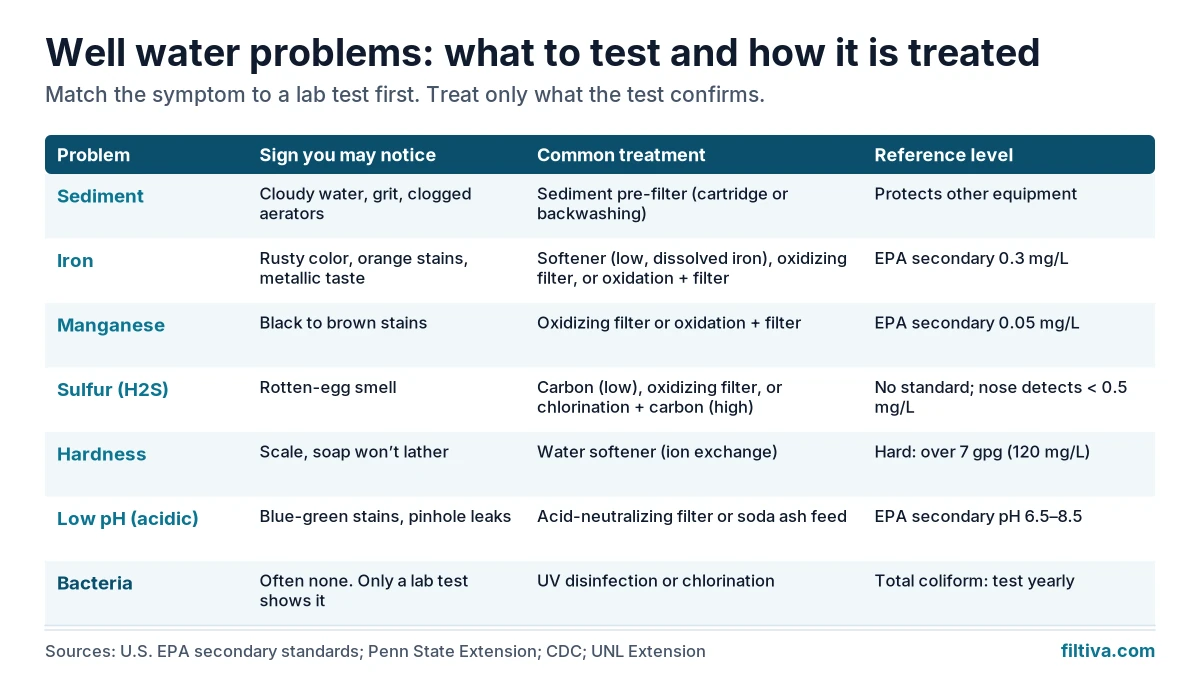

Chart matching well water problems (sediment, iron, manganese, sulfur, hardness, low pH, bacteria) to signs and treatments

The EPA's secondary standards are a helpful yardstick. They are non-enforceable guidelines for taste, color, odor, and staining, not health limits. Iron causes stains above 0.3 mg/L, manganese above 0.05 mg/L, and the suggested pH range is 6.5 to 8.5 (EPA).

Sediment: sand, silt, and grit

Sediment makes water cloudy and clogs faucet aerators. It also wears out the equipment downstream. A sediment pre-filter is usually the first stage after the pressure tank. It protects everything that comes after it, including a UV light, which needs clear water to work.

Iron and manganese: orange and black stains

Iron leaves orange-brown stains. Manganese leaves black or brown stains. Penn State Extension says iron is not a health concern at typical levels, but the EPA has a health advisory for manganese at 0.3 mg/L (Penn State Extension).

The best fix depends on how much iron you have and what form it is in. Penn State gives these general ranges:

Iron level (mg/L) Common treatment Notes
Under 2 Polyphosphate feed Keeps iron dissolved; does not remove it
Low, dissolved (clear water) Water softener Only with suitable pH and hardness
3 to 10 Oxidizing filter (such as manganese greensand) Needs regular regeneration
Over 10 Oxidation (chlorine, air, or ozone) plus filtration More maintenance; add carbon to remove leftover chlorine

Source: Penn State Extension, Iron and Manganese in Private Water Systems.

Can a softener remove iron? Sometimes. Penn State says a softener can handle small amounts of dissolved iron when the pH is above 6.7. But oxidized (rusty) iron fouls softener resin (Penn State, Water Softening). One equipment distributor notes most softeners are rated for only about 2 ppm of dissolved iron (Nelsen Corp). Check your softener's specs before you rely on it for iron.

Penn State also advises getting a written guarantee that a system will treat your water before you buy.

Sulfur: the rotten-egg smell

A rotten-egg smell comes from hydrogen sulfide gas. Penn State Extension says it is usually made by sulfur-reducing bacteria. Your nose can pick it up at levels well below 0.5 mg/L (Penn State Extension).

First, check if the smell is only in hot water. If so, the cause is often the magnesium rod in your water heater. Penn State says swapping it for an aluminum rod can help. Removing the rod entirely may void the heater's warranty.

If both hot and cold water smell, treat the whole house. Penn State lists these options by level:

Hydrogen sulfide level Treatment
Under about 1 mg/L Activated carbon filter
Up to about 2–3 mg/L Manganese greensand (oxidizing) filter
Any level; most used above 6 mg/L Chlorine injection, about 20 minutes contact time, then carbon

Source: Penn State Extension, Hydrogen Sulfide (Rotten Egg Odor) in Water Wells.

Hydrogen sulfide escapes from a sample quickly. Test it at home or use a lab that stabilizes the sample.

Hardness: scale and soap scum

Hard water carries calcium and magnesium. It leaves white scale on fixtures and makes soap hard to lather. Penn State says water under about 7 grains per gallon (gpg) probably won't cause major scaling (Penn State Extension).

A water softener (ion exchange) is the standard fix. To size one, you need your hardness in gpg, your household water use, and your iron level. Our best water softener buyer's guide walks through sizing and features.

One note for low-sodium diets: UNL Extension says softening adds about 8 mg/L of sodium for every gpg of hardness removed (UNL Extension). Water at 10 gpg would gain about 80 mg/L of sodium.

Low pH: acidic, corrosive water

Acidic water eats away at copper pipes. Penn State Extension says signs include blue-green stains, a metallic taste in water that sat overnight, and pinhole leaks (Penn State Extension).

If you see these signs, test a first-draw sample (water that sat in the pipes overnight) for copper and lead at a certified lab.

Penn State describes two main fixes:

  • Acid-neutralizing filter. A tank of calcite or similar media that slowly dissolves to raise pH. It goes after the pressure tank. It adds hardness, may lower water pressure, and needs media refills every few weeks to months.
  • Chemical feed. A pump injects soda ash or sodium hydroxide before the pressure tank. It does not add hardness.

Bacteria: the problem you can't see

Coliform bacteria have no taste or smell. Only a lab test finds them. The EPA lists chlorination, ozone, and UV light as common disinfection options (EPA).

UV disinfection is popular because it adds no chemicals. The Connecticut Department of Public Health says UV works against low levels of bacteria, viruses, Giardia, and Cryptosporidium. It does not change taste, odor, or clarity. It also leaves no leftover disinfectant in the pipes (CT DPH).

UV has limits. CT DPH does not recommend it for water with high coliform or E. coli counts, color, or suspended solids. UV light only penetrates about 2 to 3 inches of water, so cloudy water shields germs. That is why UV goes last, after the sediment and iron stages.

When shopping, NSF/ANSI 55 is the standard for UV systems. NSF says Class A units are designed to disinfect contaminated water, while Class B units are only for supplemental treatment aimed at nuisance, non-disease-causing bacteria (NSF). Confirm any certification in NSF's own listings, not just on the box.

If bacteria keep showing up in tests, ask your local health department or a licensed well contractor to inspect the well itself before relying on treatment alone.

How do the stages fit together?

When you need more than one stage, order matters. Sediment and rust can foul a softener's resin and shield germs from UV light. A common layout looks like this:

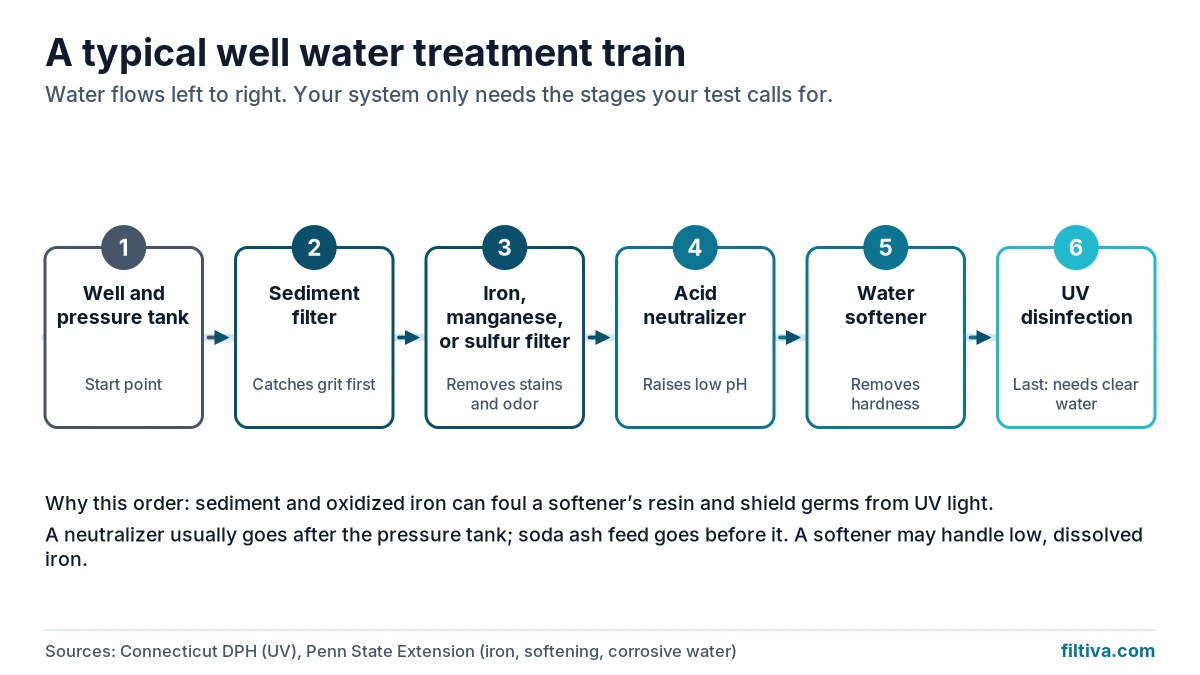

Well water treatment train: pressure tank, sediment filter, iron filter, acid neutralizer, softener, then UV light last
  1. Well and pressure tank
  2. Sediment filter to catch grit
  3. Iron, manganese, or sulfur filter
  4. Acid neutralizer, if pH is low (installers may place this before the iron filter, since pH affects iron removal)
  5. Water softener
  6. UV disinfection, last, so it sees the clearest water

CT DPH confirms UV is usually the last device in the line, placed after a particle filter. Penn State places neutralizing filters after the pressure tank and chemical feed pumps before it. Your installer may change the order for your exact water. Ask them to explain why.

Whole-house or point-of-use?

Most well problems, like iron, sulfur, hardness, and bacteria, affect every tap. They need point-of-entry (whole-house) treatment where water enters the home. Penn State notes hydrogen sulfide treatment is point-of-entry, for example.

Some problems only matter for drinking water. A point-of-use filter under the kitchen sink can handle those. If your test shows dissolved contaminants like nitrate, an under-sink reverse osmosis system is one option for drinking and cooking water. Check its certification for the exact contaminant.

The CDC adds one caution: a whole-home filter that removes chlorine may allow more germ growth in plumbing (CDC). This matters most if you chlorinate your well water.

How much does a well water filtration system cost?

HomeGuide reports that well water filtration systems cost $800 to $4,000 installed. Prices depend on how many stages you need (HomeGuide).

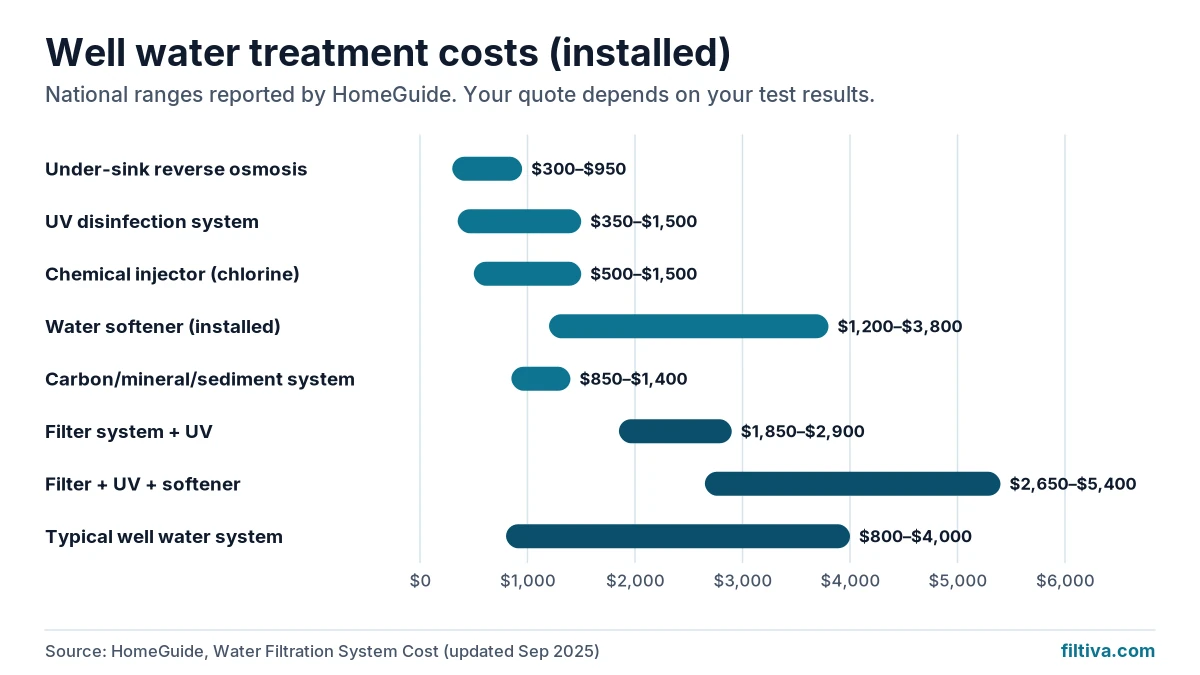

Installed well water treatment costs, from $300–$950 for under-sink RO to $2,650–$5,400 for filter, UV and softener
System Installed cost
Carbon, mineral, and sediment system $850–$1,400
Filter system plus UV $1,850–$2,900
Filter, UV, and softener $2,650–$5,400
UV disinfection system $350–$1,500
Chemical injector (chlorine) $500–$1,500
Water softener $1,200–$3,800
Under-sink reverse osmosis $300–$950
Lab water test $100–$300

Source: HomeGuide, Water Filtration System Cost (updated Sep 2025).

Other costs to plan for, per HomeGuide:

  • Plumber labor: $45 to $150 per hour
  • Permits: $30 to $500, depending on your area
  • Replacement filters: $15 to $65 each
  • UV lamps: $20 to $100

For a deeper look at whole-house pricing, see our whole house water filtration system cost guide. If hardness is your main issue, our water softener cost guide breaks down softener prices.

How to get a fair quote

HomeGuide suggests getting at least three quotes and asking whether installers hold Water Quality Association (WQA) certification. Bring your lab report to every quote. A good installer will design around your numbers, not sell you a standard package.

Pros

  • Treats the exact problems your test found
  • Protects pipes, fixtures, and appliances
  • Each stage can be added or upgraded later
  • UV disinfects without adding chemicals

Cons

  • Several stages means several maintenance tasks
  • Iron and sulfur systems can need frequent upkeep
  • Neutralizers and softeners need regular media or salt
  • No system replaces yearly lab testing

How do you maintain a well water system?

Every stage needs some care. Skipping it is the most common reason a system stops working.

Stage Typical upkeep
Sediment filter Change the cartridge on the maker's schedule or when pressure drops
Iron or sulfur filter Backwash or regenerate as the manual says; refill media when needed
Acid neutralizer Refill media every few weeks to months (Penn State)
Water softener Keep salt topped up; check for salt bridges
UV system Replace the lamp at least yearly; clean the quartz sleeve (CT DPH)

Sources: Penn State Extension; Connecticut DPH; CDC.

CT DPH also recommends disinfecting the plumbing after UV service. After a power outage, run water to waste before use, since untreated water may have passed through. Retest raw and treated water at a certified lab after installation and then once a year.

When changing filters, the CDC advises wearing gloves and washing your hands after. People with weakened immune systems should have someone else do it if possible.

For full schedules, see our water filtration maintenance guide. If something stops working, our water filtration repair guide covers leaks, pressure drops, and failed filters.

Common mistakes to avoid with well water treatment

  • Buying before testing. You may pay for stages you don't need, or miss one you do.
  • Treating smell without checking the water heater. A hot-water-only smell is often the anode rod.
  • Putting UV before the sediment filter. Cloudy water blocks UV light.
  • Relying on a softener for heavy iron. Rusty iron fouls resin.
  • Skipping the yearly test. Treatment can fail without any warning sign.
  • Trusting a certification claim you didn't check. Look it up in the NSF or WQA listings.

The bottom line

The best well water filtration system is the one built around your test results. Get a lab test. Match each problem to a stage. Put the stages in a sensible order, with UV last. Then keep up with filter changes and test every year.

For more help, browse our well water guides, or see how we research our recommendations.

FAQ

Frequently asked questions

What is the best filtration system for well water?
There is no single best system. The right setup depends on your lab results. Most wells need a sediment filter plus one or two other stages, such as an iron filter, a softener, an acid neutralizer, or UV disinfection. Test first, then match each problem to a treatment.
How often should I test my well water?
The CDC recommends testing a private well at least once a year for total coliform bacteria, nitrates, total dissolved solids, and pH. Test again after a well repair, nearby flooding, a change in taste, color, or smell, or when someone is pregnant or a baby joins the home.
Does a water softener remove iron from well water?
A softener can remove small amounts of dissolved (clear-water) iron, according to Penn State Extension, but rusty, oxidized iron fouls the resin. Check your softener’s iron rating. Higher iron levels usually need an oxidizing filter or oxidation plus filtration.
Do I need a UV light for well water?
You need disinfection if your lab test finds coliform bacteria. UV is a common choice because it adds no chemicals. It needs clear water to work, so it goes after the sediment and iron stages. Look for an NSF/ANSI 55 Class A system and confirm it in NSF’s listings.
How much does a well water filtration system cost?
HomeGuide reports $800 to $4,000 installed for well water filtration systems. A filter system plus UV runs about $1,850 to $2,900, and a filter, UV, and softener combination about $2,650 to $5,400. A lab water test costs about $100 to $300.
How do I get rid of the rotten-egg smell in my well water?
First check whether only hot water smells. If so, the water heater’s magnesium anode rod is often the cause. If hot and cold both smell, Penn State Extension lists carbon filters for low levels, greensand filters for moderate levels, and chlorination plus carbon for high levels.
Where should a UV system go in a well water setup?
UV usually goes last, after the sediment filter and any iron, sulfur, or softening stages. Connecticut’s public health department notes that UV light only penetrates a few inches of water, so cloudy water can shield germs.

Sources

This guide is based on public health agency guidance, university extension research, and national cost data. Filtiva has not hands-on tested the products mentioned. Always follow your own equipment's manual and your local health department's advice.
